End of line resistors (eolr) are resistors, of a known value, that are used to terminate protective loops or zones, such as those found in fire and the purpose of eolr's is to allow the control panel to supervise the field wiring for open or short circuit conditions.
Everywhere else, it should be at. An antenna is a straight line with three small lines branching off at its end, much like a. End of line resistor wiring diagram source: In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses. Remove these resistors and the crimp connector when disconnecting wires from your alarm panel, they're not needed for this project! The end of line resistor is needed to prevent reflections. Voltage, ground, solitary component, and switches. How the alarm responds to each depends on the panel as well as. So what our resistor's going to do is actually supervise the wiring. Injunction of 2 wires is generally indicated by black dot on the junction of two lines. Below are diagrams indicating where to place single end of line resistors. Determine the eol for your system. We hope to answer all of your questions in this article.
So what our resistor's going to do is actually supervise the wiring. End of line resistor wiring diagram from s1.manualzz.com effectively read a wiring diagram, one has to find out how the components inside the method operate. For instance , when a module is powered up and it sends out a new signal of half the voltage and the technician will not know this. Possibly related to high brightness led driver circuits. Read wiring diagrams from negative to positive in addition to redraw the routine being a straight collection.

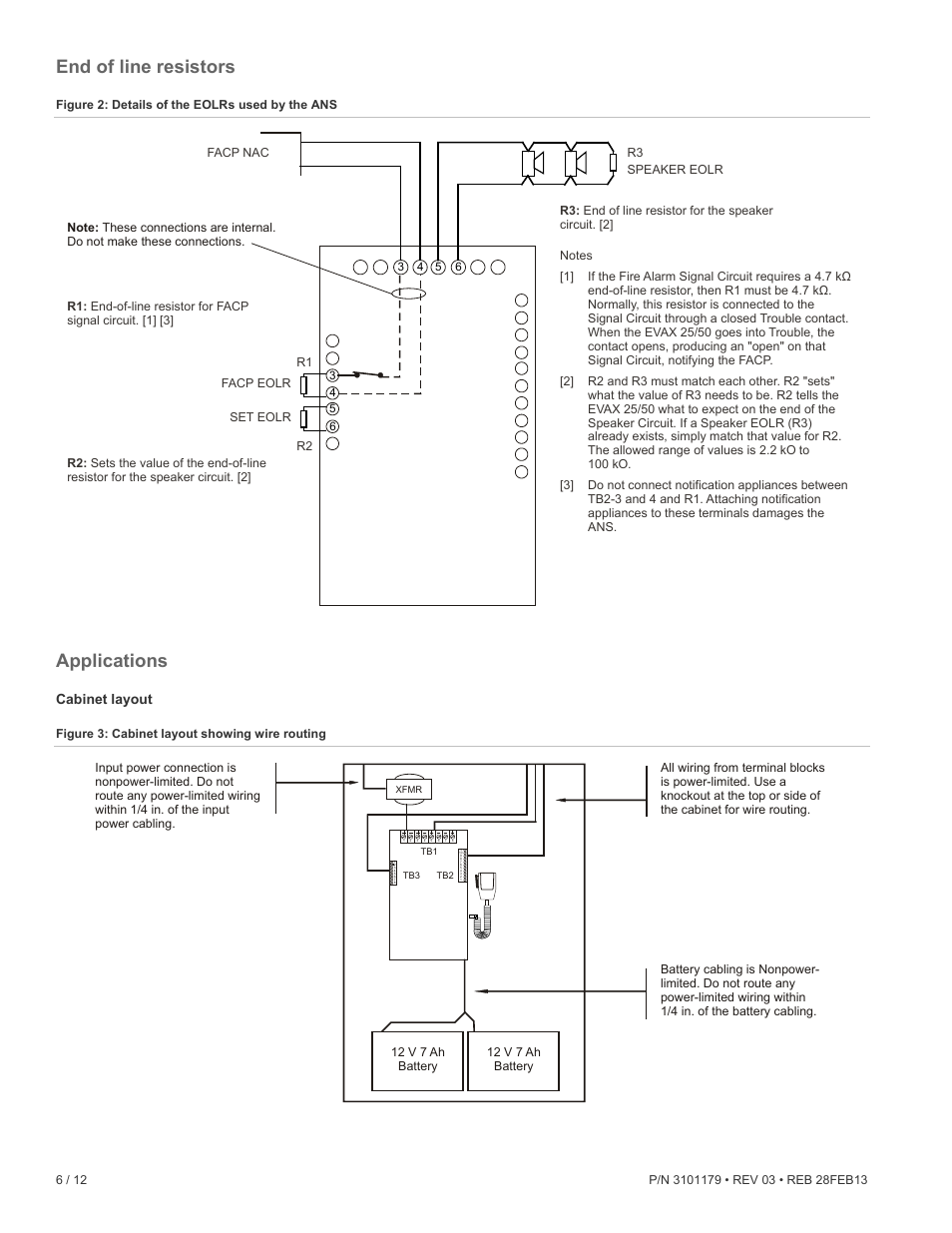

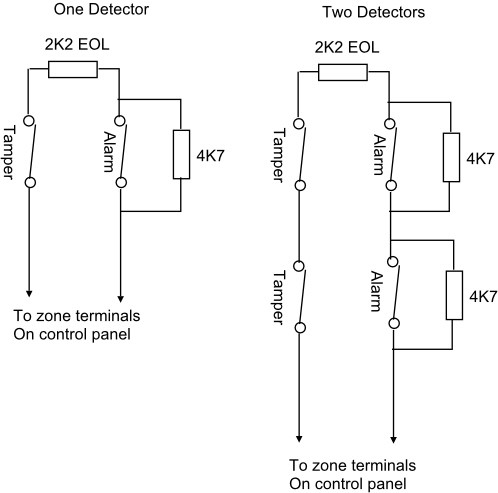

Spider Resistor Packs Spider Security Products from www.spiderprotect.com To defeat that, most alarm systems these days place a resistor in series with the wire at the furthest point of the loop. Below are diagrams indicating where to place single end of line resistors. We hope to answer all of your questions in this article. It's important to understand that the signals used in fire alarm systems are dc, either on or off, not ac. Double end of line (deol) resistors double end of line resistors allow the panel to determine if hardwired zones must be wired for double eol resistors Everywhere else, it should be at. An antenna is a straight line with three small lines branching off at its end, much like a. A resistor will be represented with a series of squiggles symbolizing the restriction of current flow.
12 led s wiring diagram notice that no load resistor.
Home » wiring diagram » led load resistor wiring diagram. Please refer to figure 1: Insert stand off into cabinet mounting hole in the desired location. How the control system responds to. End of line resistors (eolr) are resistors, of a known value, that are used to terminate protective loops or zones, such as those found in fire and the purpose of eolr's is to allow the control panel to supervise the field wiring for open or short circuit conditions. Type of wiring diagram wiring diagram vs schematic diagram how to read a wiring diagram: We hope to answer all of your questions in this article. The purpose of eolr's is to allow the control panel to supervise the field wiring for open or short circuit conditions. There'll be principal lines that are represented by l1, l2, l3, etc. Which is why in schematic diagrams, resistors are usually represented by the sharp, squiggly line. Home wiring diagram gallery from end of line resistor wiring diagram , source:visithoustontexas.org harbor breeze ceiling fan wiring diagram beautiful end line switch wiring diagram collection from end of line resistor wiring diagram , source:galericanna.com car. Injunction of 2 wires is generally indicated by black dot on the junction of two lines. Everywhere else, it should be at.
Injunction of 2 wires is generally indicated by black dot on the junction of two lines. It is used along with a capacitor in a timing circuit. As the name implies, it uses only one eol. Connect the wires to the receptacles: End of line resistor wiring diagram source:
Smoke Detector Installation Guide from www.maretron.com End of the line, or eol. Connection diagram and familiarise yourself. So you would be able to tell, for instance, if you have a short in your wiring. Double end of line (deol) resistors double end of line resistors allow the panel to determine if hardwired zones must be wired for double eol resistors The purpose of eolr's is to allow the control panel to supervise the field wiring for open or short circuit conditions. End of line resistor wiring diagram source: So what our resistor's going to do is actually supervise the wiring. G3x wiring fundamentals, video 7 of 10.
Diagram for ez go 36volt rh pinterest com ignition coil 12 volt and resistor.
All circuits usually are the same : Remove these resistors and the crimp connector when disconnecting wires from your alarm panel, they're not needed for this project! The neutral, earth and live wire should be connected to the box. Home » wiring diagram » led load resistor wiring diagram. End of line resistors (eolr) are resistors of a specified value that are used to terminate protective loops or zones. In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses. Unlike a pictorial diagram, a wiring diagram uses abstract or simplified shapes and lines to show components. There is a multitude of ways wires can be shorted or affected in a way that might not be perceivable without an end of line resistor. It's important to understand that the signals used in fire alarm systems are dc, either on or off, not ac. Some lines end at the panel which means the resistor should be installed within the panel, and some end at the last device wired in a parallel connection. To defeat that, most alarm systems these days place a resistor in series with the wire at the furthest point of the loop. An antenna is a straight line with three small lines branching off at its end, much like a. A resistor will be represented with a series of squiggles symbolizing the restriction of current flow.
